Polypropylene film and foil capacitor
POLYPROPYLENE FILM AND FOIL CAPACITOR

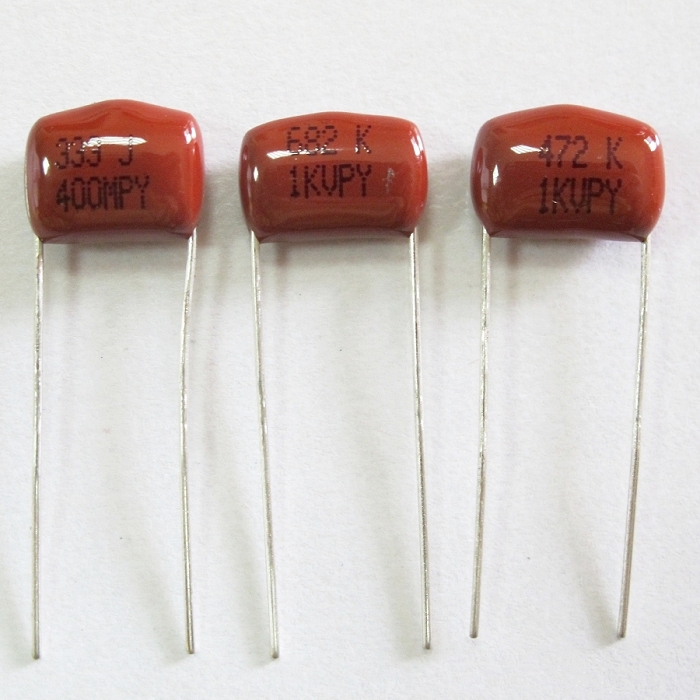

PPN are non-inductively wound with Polypropylene film dielectric and aluminum foil electrode with copper-clad steel leads and are epoxy resin coated. They are suitable for blocking, by-pass coupling, temperature compensation for applications in telecommunication, data processing, industrial instrumentation, automatic control system and other general electronic equipment.
PPN TYPE:
| RV | 250VDC | 400VDC | 630VDC | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | W | H | T | P±1 | dø | W | H | T | P±1 | dø | W | H | T | P±1 | dø |
| CAP | |||||||||||||||
| .001 | 11 | 10 | 6 | 7.5 | 0.6 | 15 | 13 | 7 | 8 | 0.6 | 15 | 13 | 7 | 8 | 0.6 |
| .0015 | 11 | 10 | 6 | 7.5 | 0.6 | 15 | 13 | 7 | 8 | 0.6 | 15 | 13 | 7 | 8 | 0.6 |
| .0022 | 11 | 10 | 6 | 7.5 | 0.6 | 15 | 13 | 7 | 8 | 0.6 | 15 | 13 | 8 | 10 | 0.6 |
| .0033 | 11 | 10 | 6 | 7.5 | 0.6 | 15 | 13 | 7 | 10 | 0.6 | 15 | 13 | 8 | 10 | 0.6 |
| .0047 | 11 | 10 | 6 | 7.5 | 0.6 | 15 | 13 | 7 | 10 | 0.6 | 15 | 13 | 9 | 10 | 0.6 |
| .0068 | 11 | 10 | 6 | 7.5 | 0.6 | 15 | 13 | 7 | 10 | 0.6 | 20 | 12 | 9 | 15 | 0.8 |
| .01 | 11 | 10 | 6 | 7.5 | 0.6 | 15 | 14 | 9 | 10 | 0.6 | 20 | 15 | 11 | 15 | 0.8 |
| .015 | 13 | 12 | 8 | 10 | 0.6 | 15 | 14 | 9 | 10 | 0.6 | 20 | 18 | 14 | 15 | 0.8 |
| .022 | 13 | 14 | 9 | 10 | 0.6 | 20 | 14 | 9 | 15 | 0.6 | 20 | 18 | 14 | 15 | 0.8 |
| .033 | 20 | 15 | 9 | 15.0 | 0.6 | 20 | 14 | 9 | 15 | 0.6 | 20 | 21 | 14 | 15 | 0.8 |
| .047 | 20 | 15 | 9 | 15.0 | 0.6 | 20 | 18 | 12 | 15 | 0.8 | 21 | 21 | 16 | 15 | 0.8 |
| .068 | 20 | 15 | 12 | 15.0 | 0.8 | 24 | 18 | 12 | 20.0 | 0.8 | 31 | 21 | 12 | 27.5 | 0.8 |
| .1 | 20 | 18 | 12 | 15.0 | 0.8 | 24 | 20 | 12 | 20.0 | 0.8 | 31 | 21 | 14 | 27.5 | 0.8 |
| .15 | 24 | 18 | 14 | 20.0 | 0.8 | 24 | 20 | 14 | 20.0 | 0.8 | 31 | 21 | 18 | 27.5 | 0.8 |
| .22 | 24 | 18 | 14 | 20.0 | 0.8 | 24 | 24 | 18 | 20.0 | 0.8 | 31 | 28 | 18 | 27.5 | 0.8 |
| .33 | 31 | 24 | 18 | 27.5 | 0.8 | 32 | 27 | 21 | 27.5 | 0.8 | |||||
| .47 | 31 | 24 | 18 | 27.5 | 0.8 | 32 | 27 | 21 | 27.5 | 0.8 | |||||
1. OPERATING TEMPERATURE : -40℃ ~ 85℃
2. DIELECTRIC STRENGTH : 150% of rated voltage for 1 minute at 25℃
3. DISSIPATION FACTOR : 0.1% MAX. at 1KHz, 25℃
4. INSULATION RESISTANCE :
≧30,000 MΩ ( C≦.1μF )
≧10,000 MΩ*C ( C＞.1μF )
2. DIELECTRIC STRENGTH : 150% of rated voltage for 1 minute at 25℃
3. DISSIPATION FACTOR : 0.1% MAX. at 1KHz, 25℃
4. INSULATION RESISTANCE :
≧30,000 MΩ ( C≦.1μF )
≧10,000 MΩ*C ( C＞.1μF )
Low dissipation factor and high insulation resistance. High stability of capacitance and DF versus temperature and frequency Low ESR Non-inductive construction
